PET Preforms and PET Bottles

Different bottles can be produced as per your sample bottles or technical drawings.

All the bottles can be fitted with our spray pumps and caps.

Round, Bullet, Boston, Oval, Square, and Fancy shaped bottles are available.

PET Preforms

Different PET preforms with different weights are available, or can be made as per your requirements.

Necks: in screw-on, crimp-on, and snap-on version.

Different colors can be made.

PET bottles

A1 PET bullet 30ml 20/410 dia. 30mm X height 72.4mm

A2 PET bullet 60ml 20/410 dia. 32mm X height 104mm

A3 PET bullet 60ml 24/410 dia. 33mm X height 99.3mm

A4 PET bullet 90ml 20/410 dia. 38mm X height 104mm

A5 PET bullet 120ml 20/410 dia. 39.4mm X height 136mm

A6 PET bullet 240ml 24/410 dia. 47.6mm X height 173mm

B1 PET oval bottle 65ml 20/410 width 44.7mm X thickness 31mm X height 102.5mm

B2 PET oval bottle 125ml 20/410 width 54mm X thickness 35mm X height 135mm

B3 PET oval bottle 240ml 24/410 width 64.5mm X thickness 43.5mm X height 169mm

C1 PET flat shoulder 40ml 20/410 dia. 29.6mm X height 82mm

C2 PET flat shoulder 60ml 20/410 dia. 34mm X height 91mm

C3 PET flat shoulder 115ml 24/410 dia. 38.3mm X height 123mm

C4 PET flat shoulder 125ml 24/410 dia. 41.5mm X height 119mm

C5 PET flat shoulder 150ml 24/410 dia. 40mm X height 151mm

C6 PET flat shoulder 250ml 24/410 dia. 49.5mm X height 159mm

C7 PET flat shoulder 320ml 24/410 dia. 54mm X height 172mm

D1 PET round 55ml 20/410 dia. 35mm X height 85.5mm

D2 PET round 60ml 20/410 dia. 35mm X height 93mm

D3 PET round 65ml 20/410 dia. 33.3mm X height 102mm

D4 PET round 110ml 20/410 dia. 37mm X height 129mm

E1 PET draft shoulder 70ml 28/410 dia. 40.3mm X height 82.6mm

E2 PET draft shoulder 120ml 28/410 dia. 47.5mm X height 104mm

E3 PET draft shoulder 250ml 28/410 dia. 58mm X height 139.3mm

F1 PET round drum bottle 35ml 15/415 dia. 26.2~31mm X height 82.5mm

F2 PET round drum bottle 50ml 20/410 dia. 36.4~31.5mm X height 100mm

F3 PET round drum bottle 60ml 18/415 dia. 36~38.7mm X height 107mm

F4 PET round drum bottle 110ml 20/410 dia. 44.3~39.3mm X height 123mm

F5 PET round drum bottle 150ml 24/410 dia. 42.3~46mm X height 133mm

F6 PET round drum bottle 175ml 24/410 dia. 44.8~52.8mm X height 139mm

F7 PET round drum bottle 200ml 24/410 dia. 54~50mm X height 153mm

G1 PET flat drum 50ml 20/410 width 45.7mm X thickness 26mm X height 95mm

G2 PET flat drum 100ml 20/410 width 44mm X thickness 30.5mm X height 132mm

G3 PET flat drum 120ml 20/410 width 57mm X thickness 32.5mm X height 114mm

G4 PET flat drum 200ml 24/410 width 49.5mm X thickness 40.5mm X height 187.0mm

G5 PET flat drum 250ml 24/410 width 71.5mm X thickness 40.5mm X height 140.5mm

G6 PET flat drum 480ml 28/410 width 89mm X thickness 51mm X height 175mm

H1 PET amber Boston 55ml 20/410 dia. 37.5mm X height 73mm

H2 PET amber Boston 70ml 20/410 dia. 39mm X height 80mm

H3 PET amber Boston 150ml 24/410 dia. 49mm X height 108mm

H4 PET amber Boston 250ml 24/410 dia. 58mm X height 131mm

H5 PET amber Boston 320ml 24/410 dia. 63mm X height 129mm

H6 PET amber Boston 360ml 24/410 dia. 66.5mm X height 136mm

J1 PET ball 60ml 20/410 dia. 51mm X height 60mm

J2 PET ball 100ml 24/410 dia. 60mm X height 69mm

J3 PET ball 130ml 24/410 dia. 60.5mm X height 91mm

J4 PET ball 250ml 24/410 round dia. 76mm X height 108mm

L1 PET oval 40ml 18/415 width 41.5mm X thickness 29mm X height 79.3mm

L2 PET straight oval 55ml 18/415 width 37.3mm X thickness 29mm X height 88mm

L3 PET straight oval 60ml 20/410 width 43.5mm X thickness 28.5mm X height 97.5mm

L4 PET oval 85ml 20/415 width 51mm X thickness 26mm X height 114mm

L5 PET oval 120ml 20/410 width 46mm X thickness 39mm X height 125mm

L6 PET straight oval 200ml 24/410 width 55mm X thickness 45.5mm X height 128mm

L7 PET oval 250ml 24/410 width 65mm X thickness 41mm X height 158mm

M1 PET flat 110ml 20/410 width 52.3mm X thickness 27.7mm X height 103.5mm

M2 PET flat 125ml 20/410 width 53.4mm X thickness 27.8mm X height 124mm

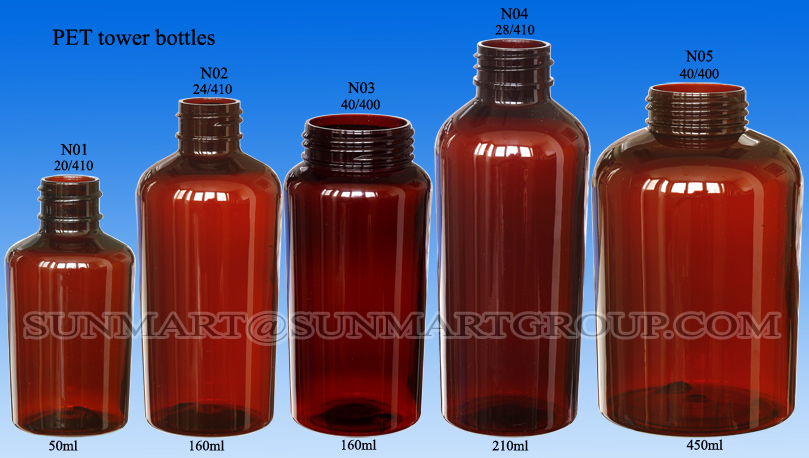

N01 clear PET tower 50ml 20/410 dia. 35.5~39mm X height 75mm

N02 clear PET tower 160ml 20/410 dia. 46.4~51.2mm X height 115mm

N03 clear PET tower 160ml 40/400 dia. 47.5~52.3mm X height 109.7mm

N04 clear PET tower 210ml 28/410 dia. 48.7~53.6mm X height 138mm

N05 clear PET tower 450ml 40/400 dia. 78.2~81.8mm X height 121.5mm

01 PET 15ml neck: 18/415 dia. 22.2mm X height 59.4mm

01A PET 15ml neck: 20/410 dia. 23.5mm X height 59.1mm

02 PET 20ml neck: 18/415 dia. 24mm X height 71.4mm

02A PET 20ml 20/410 dia. 25mm X height 65.5mm

03 PET 25ml neck: 20mm width 34mm X thickness 21.5mm X height 78mm

03A PET 25ml 18/415 dia. 27.5mm X height 65mm

03B PET 25ml neck: 18/415 dia. 25mm X height 71mm

04 PET 30ml neck: 20/410 dia. 28mm X height 79.7mm

04A PET 30ml neck: 20/410 dia. 24.7mm X height 90.5mm

04B PET 30ml 18/415 dia. 21.5mm X height 100mm

05 PET 33ml neck: 15/415 width 32mm X thickness 25.3mm X height 80mm

06 PET 35ml neck: 18/415 width 47mm X thickness 22.3mm X height 63.5mm

06A PET wine 35ml neck: 18/415 dia. 24mm X height 104mm

07 PET 43ml neck: 20/410 dia. 30mm X height 82.5mm

08 PET square 50ml neck: 20/410 width 32.5mm X height 68.3mm

09 PET 60ml neck: 20/410 dia. 32mm X height 105mm

09A PET 60ml neck: 20/410 dia. 34mm X height 90mm

09B PET 60ml neck: 20/410 dia. 36mm X height 81mm

09C PET square 60ml neck: 20/410 width 31.3mm X height 89.2mm

10 PET 65ml neck: 20/410 dia. 34mm X height 96.7mm

10A PET 65ml neck: 20/410 dia. 42.5mm X height 86.5mm

10B PET 65ml neck: 20/410 width 43mm X thickness 27mm X height 107mm

11 PET 70ml neck: 18/415 width 47mm X thickness 25mm X height 104.5mm

12 PET 100ml neck: 20/410 dia. 35.2mm X height 138mm

12A PET 100ml neck: 20/410 width 50mm X thickness 34mm X height 112mm

12B PET 100ml neck: 20/410 width 39.5mm X thickness 28.5mm X height 117mm

13 PET 105ml neck: 20/415 dia. 35.4mm X height 138mm

14 PET 115ml neck: 20/410 dia. 38mm X height 132mm

15 PET 120ml neck: 20/410 dia. 51mm X height 105mm

16 PET 125ml neck: 20/410 width 47mm X thickness 38mm X height 115mm

16A PET 125ml neck: 24/410 dia. 38mm X height 135mm

17 PET 130ml neck: 20/410 dia. 37.5mm X height 150.5mm

17A PET 130ml neck: 20/410 width 53.5mm X thickness 42mm X height 128.7mm

18 PET 160ml neck: 24/410 dia. 43.5mm X height 138mm

19 PET 225ml neck: 24/410 dia. 45.5mm X height 183mm

20 PET 500ml neck: 28/400 dia. 86.5mm X height 123mm
