Nasal Sprayers

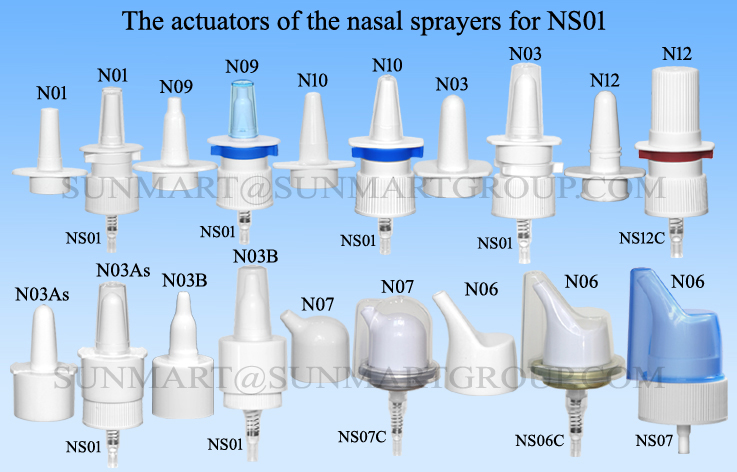

1. the nasal sprayers NS-01 in screw-on version with Actuators:"N01","N09" with PS dustcap, "N10","N03","N03A","N03As","N03B" with PP Dustcaps

- Closures:15/410,15/415 ribbed dosage: 0.05ml
- Closures: 17/410,17/415,18/410,18/415,20/410 ribbed dosage:0.10ml, 0.12ml
- Closures: 24/410,28/400,28/410 ribbed dosage:0.10ml, 0.12ml

- the actuator "N06" is used for alu.cans neck 1" or closure 30/400 ribbed,the dosages: 0.10ml,0.12ml

- the actuator "N07" is used for alu.cans neck 1"and dosages:0.10ml,0.12ml

- the actuator "N12" with child-resistant cap is used for the special nasal sprayers.

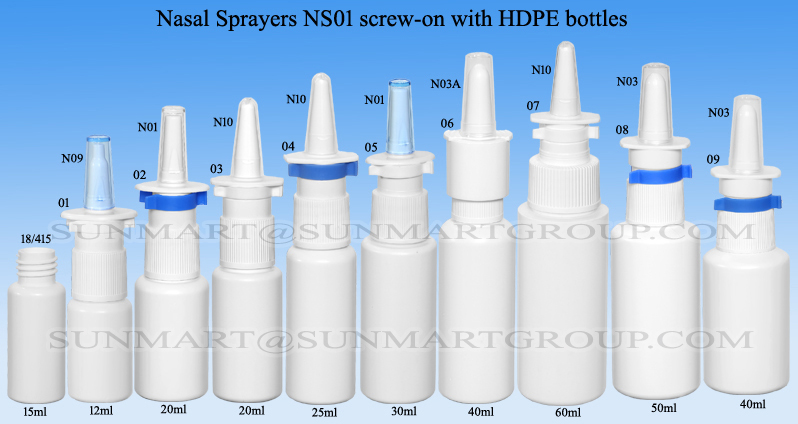

- #01 HDPE bottle 12ml neck: 17/415 dia.23mmX51,5mm with NS01 17/415 dosages: 0.10ml,0.12ml act.N09 + PS dustcap

- #02 HDPE bottle 20ml neck: 18/415 dia.27mmX58mm with NS01 18/415 dosages: 0.10ml,0.12ml act.N01 + PS dustcap

- #03 HDPE bottle 20ml neck: 17/415 dia.25mmX62.5mm with NS01 17/415 dosages: 0.10ml,0.12ml act.N10 + PP dustcap

- #04 HDPE bottle 25ml neck: 18/415 dia.25mmX71mm with NS01 18/415 dosages: 0.10ml,0.12ml act.N10 + PP dustcap

- #05 HDPE bottle 30ml neck: 20/410 dia.29mmX73mm with NS01 20/410 dosages: 0.10ml,0.12ml act.N01 + PS dustcap

- #06 HDPE bottle 40ml neck: 17/415 dia.29mmX83mm with NS01 17/415 dosages: 0.10ml,0.12ml act.N03A + PP dustcap

- #07 HDPE bottle 60ml neck: 24/410 dia.34.5mmX93.5mm with NS01 24/410 dosages: 0.10ml,0.12ml act.N10 + PP dustcap

- #08 HDPE bottle 50ml neck: 20/410 dia.34mmX83mm with NS01 20/410 dosages: 0.10ml,0.12ml act.N03 + PP dustcap

- #09 HDPE bottle 40ml neck: 20/410 dia.33mmX70.5mm with NS01 20/410 dosages: 0.10ml,0.12ml act.N03 + PP dustcap

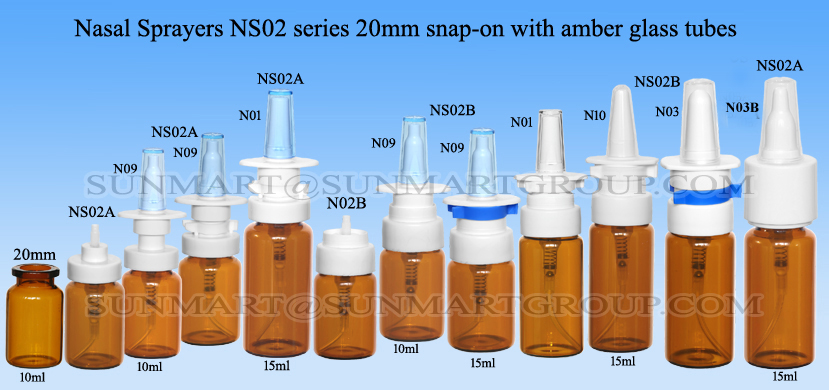

2. the nasal sprayers NS-02 in snap-on version with different capacity of glass tubes, dosages:0.10ml, 0.12ml

- the snap closure NS02 is used for the special neck 20mm in our PP bottles NSPP02

- the snap closures NS02A with small neck and NS02B with wider neck are used for the standard glass neck 20mm

- the amber and clear glass tubes 10ml~30ml are available for your options

- the glass tubes' dimensions: 10ml-dia.24Xheight 44.5mm 15ml-dia.24Xh.59.5mm 20ml-dia.24Xh.63mm

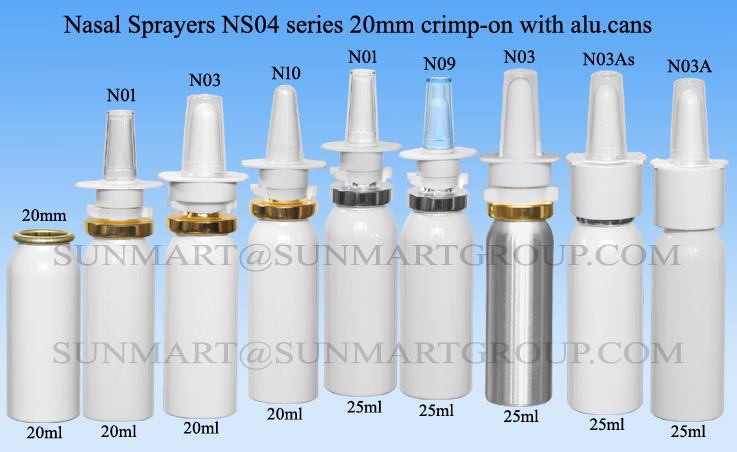

4. the nasal sprayers NS-04 in crimp-on version with with different capacity of alu.cans from 10ml to 30ml
- metal ferrule: dia.15mm dosages: 0.04ml,0.05ml,0.08ml,0.10ml and 0.12ml
- metal ferrule: dia.18mm, 20mm dosages: 0.04ml,0.05ml,0.08ml,0.10ml and 0.12ml

- the actuator "N03A" with the longer skirt than "N03As" and the metal ferrule can fully be covered

- the aluminium cans' dimensions: 20ml-dia.22Xheight 76mm 25ml-dia.25Xh.76mm

30ml-dia.25Xh.85mm

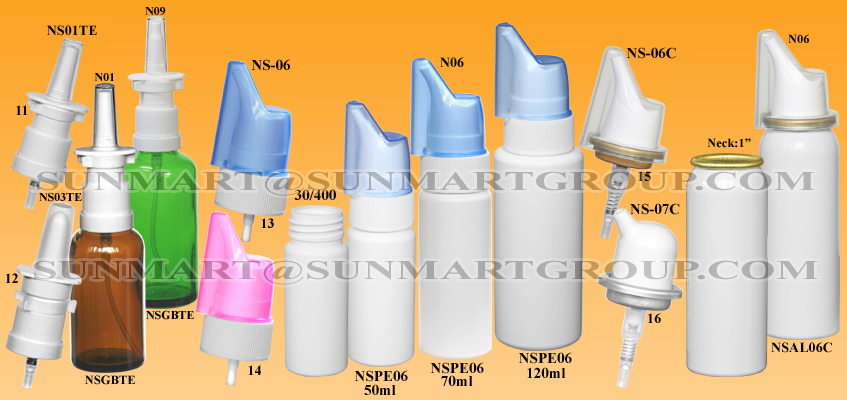

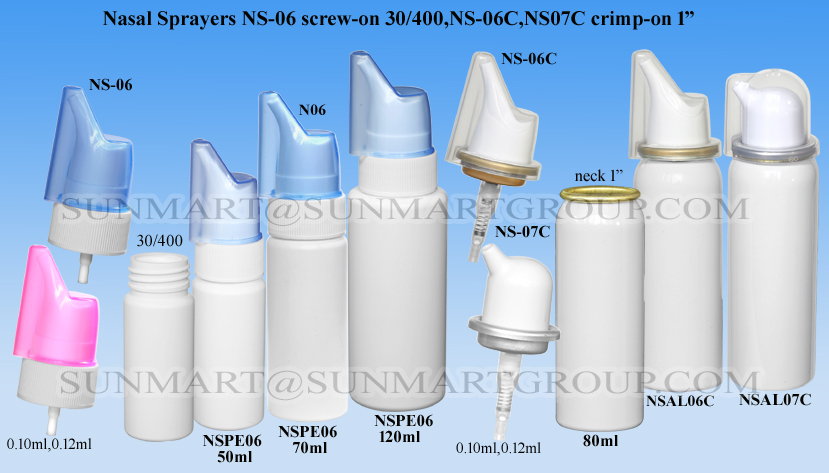

5. the nasal sprayers NS-06 in screw-on version with Actuator: "N06" + PP cap
Closure: 30/400 ribbed dosage:0.10ml and 0.12ml

  - the combination nasal spray units NSPE06
   - HDPE bottle 50ml neck: 30/400 with the nasal sprayer NS-06+PP cap
      the bottle's dimension: dia.34.3mmXheight 92mm

- HDPE bottle 70ml neck: 30/400 with the nasal sprayer NS-06+PP cap
the bottle's dimension: dia.34.3mmXheight 102mm

- HDPE bottle 120ml neck: 30/400 with the nasal sprayer NS-06+PP cap
the bottle's dimension: dia.41.5mmXheight 124mm

- the nasal sprayers NS-06C in metal aerosol ferrule with Actuator: "N06" + PP cap
Ferrule's size: 1" dosage:0.10ml and 0.12ml

6. the nasal sprayers NS-07C in aerosol metal ferrule with the actuator: "N07"

Ferrules' sizes: 1" dosage:0.10ml and 0.12ml

- Our new developped nasal sprayer NS12C 18mm snap-on with HDPE bottles 15ml, 30ml Patented by Wuxi Sunmart

the characteristics of the Patent:
- the ribbed Cap: in child-resistant "CRC",taking off by "Push Down While Turning"
- the Actuator: in snap-in(can't be pull out from the pump)
- the ribbed Closure: in snap-on 18mm
- the nasal sprayer NS12C 18/410 ratched closure screw-on dosage: 0.10ml,0.12ml Actuator: N12 in snap-in with PP child-resistant overcap+plastic locking clip
- the HDPE bottle 15ml neck: 18mm snap-on
the bottle's dimension: dia.27.6mmXheight 62mm
- the HDPE bottle 30ml neck: 18mm snap-on

the bottle's dimension: dia.31.5mmXheight 73mm

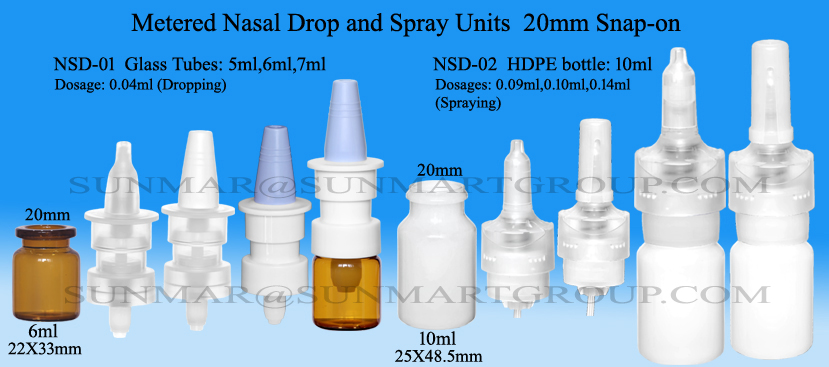

- Our new developped metered nasal drop and spray units NSD series 20mm snap-on with glass tubes and HDPE bottles patented by our customers

- NSD-01 the metered nasal drop dosage: 0.04ml Closure: 20mm snap-on with the glass tubes: 5ml,6ml,7ml neck: 20mm

- NSD-02 the metered nasal spray dosage: 0.09ml,0.10ml,0.14ml Closure: 20mm snap-on with the glass tubes:

5ml,6ml,7ml neck: 20mm

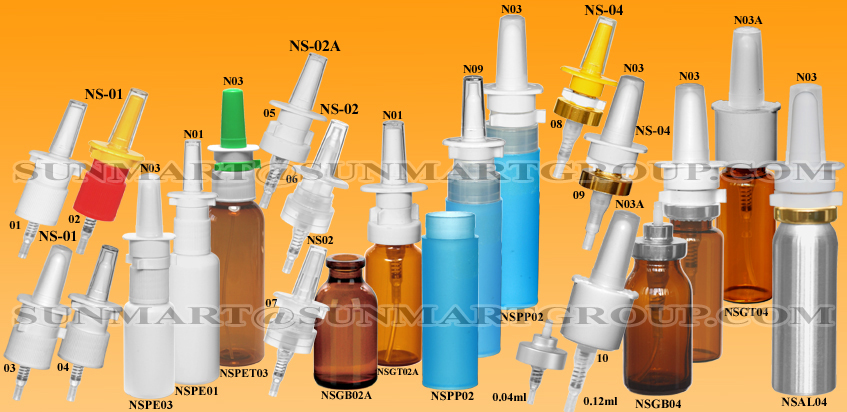

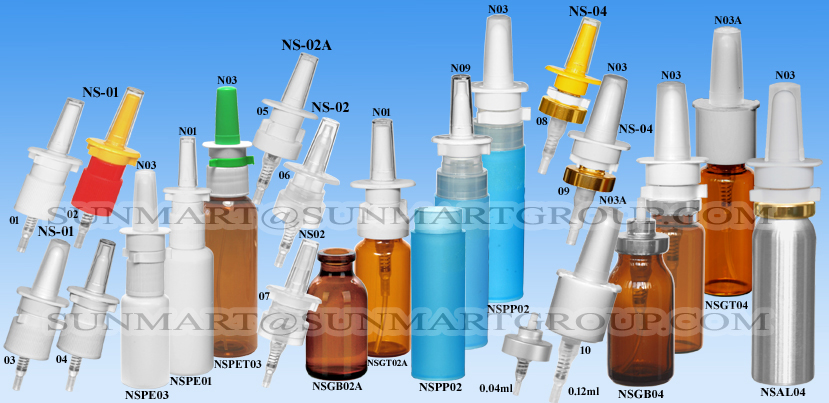

1. the nasal sprayers NS-01 in screw-on version with Actuators: "N01","N09" with PS dustcap, "N03"with PP dustcap

- Closures: 15/410,15/415 ribbed dosage:0.05ml
- Closures: 17/410,17/415,18/410,18/415,20/410 ribbed dosage:0.10ml, 0.12ml
- Closures: 24/410,28/400 ribbed dosage:0.10ml, 0.12ml

2. the nasal sprayers NS-02 in snap-on version with Actuators: "N01","N09" with PS dustcap, "N03"with PP dustcap
- the PP special snap-on closure: dia.20mm dosage:0.10ml, 0.12ml
This special snap-on closure dia.20mm for NS-02 is used for our PP bottles NSPP02.

3. the nasal sprayers NS-02A for standard neck in crimp-on 20mm with Actuators: "N01","N09" with PS dustcap, "N03"with PP dustcap
- the PP standard snap-on closure: dia.20mm dosage:0.10ml, 0.12ml
This standard snap-on closure dia.20mm for NS-02A is used for regular neck dia.20mm of glass bottles and glass tubes NSGB/GT02A.

4. the nasal sprayers NS-04 in crimp-on version with PS or PP dustcap + Actuators: "N01","N03","N09" for NSGB/GT/AL04
   - metal ferrule: dia.15mm dosage:0.04ml,0.05ml,0.08ml,0.10ml and 0.12ml
   - metal ferrule: dia.18mm, 20mm dosage:0.04ml,0.05ml,0.08ml,0.10ml and 0.12ml

5. the actuator: "N03A" with PP dustcap of the nasal sprayers NS-04 in crimp-on version is used only for metal ferrule:dia.20mm of NSGB/GT/AL04
    - metal ferrule: dia.20mm dosage:0.04ml,0.05ml,0.08ml,0.10ml and 0.12ml

6. the nasal sprayers NS-06 in screw-on version with Actuator: "N06" + PP cap
    Closure: 30/400 ribbed dosage:0.10ml and 0.12ml

8. the nasal sprayers NS-06C in metal aerosol ferrule with Actuator: "N06" + PP cap
    Ferrule's size: 1" dosage:0.10ml and 0.12ml

7. the nasal sprayers NS-07C in aerosol metal ferrule with the actuator: "N07"
   Ferrules' sizes: 1" dosage:0.10ml and 0.12ml

9. the combination nasal spray units NSPE06
   - HDPE bottle 50ml neck: 30/400 with the nasal sprayer NS-06+PP cap
      the bottle's dimension: dia.34.3mmXheight 92mm

   - HDPE bottle 70ml neck: 30/400 with the nasal sprayer NS-06+PP cap
      the bottle's dimension: dia.34.3mmXheight 102mm

   - HDPE bottle 120ml neck: 30/400 with the nasal sprayer NS-06+PP cap
      the bottle's dimension: dia.41.5mmXheight 124mm
